Line, Winders & Accessories

Dan & Bev Leigh, 54 Osborne Road, Pontypool, Gwent, Wales, UK NP4 6LX


· Lead time for kites can be short (2 to 5 weeks), but it's often longer (6 to 12 weeks or more), depending on the number and sizes of kites already on order plus, a chaos factor. Since the situation can change over the course of a single day, lead time is well-nigh unpredictable.
· We make kites only after receipt of payment; not in response to telephone requests alone.
· LIMIT: Two kites per order.
· We do not do free repairs or supply free replacement parts, and we don't re-build kites made by other people even if it is claimed they were made by us—worn out, UV damaged, rotted, oxidized, shredded, severely stretched or otherwise mis-shapen kites cannot be repaired.

Please remember to supply a contact phone number for all deliveries outside the UK

Kevin Flynn photoThe kite is an experimental scaled-up Wildcard >



Flying Line

Choose the right line for the the kite!

The line is an integral part of the kite+line system.

Line is chosen on the basis of both the size of the kite and the wind it flies in. You need light line for small kites and heavier line for big ones, and for any given size you need light line for light wind and heavy line for strong wind.


Rough guide to choosing flying line

For light wind, use a breaking strain (in pounds) of 2 to 3.5 times the square footage of the kite (rounded to the nearest square foot).

5 or 6 times the wing area is "normal," while for stronger winds use 8 times or more.


RECOMMENDATIONS

50-55lb for Little Bears & Whirlwinds in light winds
55-88lb for Clippers in light winds and Whirlwinds & Wildcards in light-to-medium winds
88-110lb for R7 & M7
110-125lb for Wildcards in breezier weather, and anything from
125-200lb (or more) for Troopers


At the Round Pond in Kensington Gardens most flyers used 80lb line regardless—just in case a kite got stuck in a tree, where lighter lines could break with the tugging. With 80lb line they'd more than likely get the kite back (though not necessarily undamaged).

Typical flying line: braided polyester. It has low stretch (less than 4%) which gives good responsiveness. It's reasonably priced, though price varies with quality. It's made for fishing and therefore readily available. Go for uncoated line, or a non-sticky coating. Waxed line can stick to itself on reels, requiring you to pull the line off by hand in light breezes.

The cheapest lines are twisted nylon and monofilament nylon. I still use some old twisted nylon on one reel. Although initially it's a little too stretchy, it's durable and really good for tying knots. Monofilament, also commonly used for angling, is relatively inexpensive, and because it's so smooth gives good flying angles. However tempting, it should be avoided for serious kite flying. While safe to use when brand new, it can part suddenly without warning after it's been used a few times. All it takes is one little innocuous kink to weaken it at a point, creating a stress concentration. You probably won't notice anything until it's too late.

Top of the food chain are the so-called "high tech" lines. These are aramid and coramid fiber lines with sensational strength for their thickness. They go by a variety of trade names. A line that looks like dental floss can have a breaking strain of nearly 200 pounds. Low weight and minimal drag mean high flights and stupendous flying angles, and with almost zero stretch kites flown on them are super-responsive. They do not come cheap, and there are a couple of other downsides to them in addition to cost.

One is that they can be downright dangerous, especially on big kites that pull hard. Think: cheese cutter. They have been known to cut the metal frame of a baby's pram. They've sliced through gloves, skin and tendons. And some can cut through themselves wherever there are knots, which is the reason for sleeving. My now fairly old 50lb Kevlar® line had to be sleeved, which put me off high tech lines for over a decade, but it has never failed. Now, there are "superbraids" with a hard coating applied to the outer fibers, meaning they no longer need sleeving at knots. (Sleeving kits are available from line suppliers for any line that needs it. Alternatively, one can make do with a darning needle or length of thin wire folded back on itself, and some braided nylon utility cord with the inner fibers pulled out.)

Superbraids can be surprisingly difficult to cut intentionally. Special tools are sold for the job, though one can manage without them. Field repairs could be tedious not only because of the difficult cutting and trimming, but also because the stickiness of the hard coating makes many normal knots awkward, if not almost impossible, to snug up neatly and properly. Still, many flyers feel the gain in performance is worth the effort. I have two reels loaded with these lines. In light winds they are astonishing, and in strong winds their minimal drag allows kites to climb to significantly steeper angles than they could with ordinary line. 1,000 feet of 80lb twisted nylon has about 4 square feet of surface area and significant weight. The equivalent superbraid is much thinner and lighter, and can seemingly double a kite's performance. For strong winds heavier lines with a higher breaking strain than necessary can be used for an extra margin of safety and still allow the extra flying angle.

An assortment of lines is essential for flying in a wide range of winds.

The force the wind exerts varies with the square of the wind speed. With light line you'll get the steepest flying angle and the best possible performance in light winds and thermals, while heavier lines give more steadiness and stability in breezier conditions.

For example, consider line 1/16th of an inch in diameter. 1,000 feet adds up to over 5 square feet of surface area, which equals a fair bit of drag in addition to its shear weight. Modern, super-thin, high-tech aramid or coramid line makes a very significant difference in light winds. The reverse is true for strong winds. Extra-heavy line helps to counter-balance the pull, and the line's inertia and drag help keep everything steady, leaving the kite more manageable.

So, having a selection of lines is most useful, but if you have only one reel, the trick is to have kites for different winds that all require the particular line you've got. In practice, especially if all one's kites are within a particular size range, 2 or 3 lines cover most situations.

Line care and attention

Kite lines can break suddenly and unexpectedly. Sometimes it can take no more than a quick jerk or tug from a thermal, or a burst of turbulence. Sometimes there's an almost invisible weak spot on the line, or some small cut or wear. The line may even be brand new. As the Scouts say, "Be prepared."

Watch when winding line onto reels - make sure it goes on evenly and flat; nurture the habit of winding with a side-to-side action so you don't have to watch it constantly. The objective is to avoid a buildup of coils of line at the reel sides, which can roll off under tension. The line can then pull underneath and get severely stuck in what we call a "bird's nest."

Through normal use, kite lines eventually develop weak spots. Always keep an eye on your flying line as it goes out or comes in. Be on the lookout for frayed spots, cuts, pronounced kinks, surface abrasion - any damage that could weaken the line. Cut these out then-and-there and use a Blood Knot (or Double Grinner) to join the line. A small, sharp pocket knife (or scissors) comes in handy in the field, as does a cheap lighter for melting the raw ends of knots after trimming - in a pinch it could all be done with just a lighter. Replace worn out line before it breaks!

The first 10 or 15 yards of line at the swivel end is most likely to show signs of wear, and can be chopped off periodically, re-tying the swivel; this job is best done at home.

Never leave discarded sections of old flying line in the field.

A word about knots

Bear in mind that line won't be stronger than the weakest links, so it pays to learn a few good knots. Fishermen have an arsenal of excellent knots; for the rest of us a good knot book is a useful reference. Try to find one that indicates the relative strengths of the knots, and look for knots between 90 or 95 and 100% efficiency. Many common knots actually weaken the line, reducing its strength by as much as 50% or more.

Back to top


Spools, Line, Swivels, Clips & Hardware Catalog

click on links for more information and pictures

Plastic Kite Spools
UK delivery for spools: £4.00 (1st Class) or £3.45 (2nd Class) inc. VAT
8 inch/20cm
Kite Spools
£4.00
(£3.33 w/o VAT)
Hoop Spool
  • 8 by 1 3/8 inches (20 x 3.5 cm)
  • Comfortable to hold
  • Ideal for traveling light
  • Will not hold 500 meters of medium-thick line
  • (Click here for more information and a warning)
  • Larger hoop spools, wood and ball bearing kite spools are available here (link to Kites4U opens in a new tab/window)

We currently do not stock flying line - click here to jump to UK suppliers listed below

HARDWARE: click on links for details
Swivels / Snap Swivels / Link Swivels
Snap swivels consist of a snap and a swivel. Many (though not all) ready-made snap swivels are sold with breaking strains based on the stronger of those two parts, not the weakest - usually a bulky swivel on a weaker snap. Now, with cheap, poorly-made Chinese copies made from inferior metals flooding the tackle market, you don't get breaking strains at all. Therefore I began making up my own, all suitable for kite flying.
    Tips
  • Using swivels significantly stronger than the line gives a long and reliable service life.
  • Big snap links are easier to handle than small ones.
  • Kite flying swivels have to endure prolonged periods of heavy tension. Test-rated components made to very high standards from high quality metals are both strong and reliable, while poorly-made, base-metal copies made with inadequate quality control cannot be given breaking strains and can fail at surprisingly low loads.
UK delivery (up to a dozen items): 90p 2nd Class | £1.20 1st Class
(click on swivel names below to view)

Crane Interlocks
medium for 55 and large for 88-110lb lines
1. Medium for 50-55lb line: 20p each (17p w/o VAT)

2. Large for 80-110lb line: 25p each (21p w/o VAT)
Snap Swivels for Light Lines
Hooked Snap Links on Standard Swivels
for 40-88lb lines
3. 140lb-rated stainless steel snap link on Japanese rolling swivel rated 175lb (Sakuma size 1/0): 30p each (25p w/o VAT)
Hooked Snap Links on 100% Stainless Steel Swivels
durable and lightweight combinations for 25-70lb lines
4. 140lb-rated stainless steel snap link on tiny stainless steel 180lb-test Mighty-Mini swivel: 40p each (33p w/o VAT)

5. 140lb-rated stainless steel snap on small & light stainless steel 220lb-test Mighty-Mini swivel: 45p each (38p w/o VAT)
Snap Swivels for Medium Lines
Duolock Snap Links on Strong Durable Swivels
combinations for 80-110lb lines
6. 150lb-test duolock snap link on 175lb rolling swivel: 45p each (38p w/o VAT)

7. 150lb-test duolock snap link on 220lb 100% stainless steel Mighty-Mini crane swivel: 55p each (46p w/o VAT)

8. 150lb-test duolock snap link on 250lb Varivas 'Power Crane' swivel: 70p each (58p w/o VAT)

9. 150lb-test duolock snap link on 310lb 100% stainless steel Mighty-Mini crane swivel: 80p each (67p w/o VAT)
Extra-strong Snap Swivels
Crosslock Snap Link Swivels
serious swivels for serious kiteflying on 100 to 150lb lines
10. 175lb-test American 'best quality' crosslock swivel: 60p each (50p w/o VAT)

11. 275lb-test 100% stainless steel crosslock snap on 310lb-test 100% stainless steel swivel: £1.40 each (£1.17 w/o VAT)
    Why (most) experienced kite flyers use swivels
  • Swivels with snap links make changing kites or line in the field quick and easy.
  • The line end will not be weakened by the wear-and-tear of frequent tying and un-tying.
  • Winding in the last few hundred feet of line without a swivel can be hampered by a tangled build-up of twists, especially if winding in by hand without the aid of a deep-sky reel.
Ready-made Lure Line Release Linkages for Falconry: click on links for details
UK delivery: 95p 2nd Class | £1.25 1st Class
Running SnapAways
For clipping your lure line onto a Ringboom anywhere on the kite line
On-line SnapAway Kit
Repositionable
A Running SnapAway linkage with Ringboom
and choice of mini carabiners
£10.00 (£8.33 without VAT) bare, with NO carabiner clip
or
£12.20 (£10.17 without VAT) with lightweight, generic 6cm mini carabiner
or
£14.50 (£12.08 without VAT) with 7cm Singing RockTM mini carabiner
or
£15.00 (£12.50 without VAT) with 7cm StubaiTM screwgate mini carabiner
or
£16.00 (£13.33 without VAT) with light alloy 6cm KongTM mini carabiner
Extra Ringbooms · easily attached - no knots
· won't damage kite line
· won't slip - shouldn't fall off
£1.75 (£1.46 without VAT) with ring for
SnapAways with adjustable clips
Note: click here for Line Releases on the web
Spare Clips and Rings
UK delivery: 95p 2nd Class | £1.25 1st Class
generic 6cm Carabiner Clips £2.20 each (£1.83 without VAT)
KongTM 6cm Carabiner Clips £6.00 each (£5.00 without VAT)
Singing RockTM 7cm Carabiner Clips
well-made in EU from good metal alloy
£4.50 each (£3.75 without VAT)
StubaiTM Screwgate 7cm Carabiner Clips
locking mini carabiner from Austria
£5.00 each (£4.17 without VAT)
UK delivery: 70p 2nd Class | 85p 1st Class
Adjustable Clip for falconry
· fits 13mm clear plastic O-rings
£3.15 each (£2.63 without VAT)
3/4" OD alloy O-ring (13.5mm ID) 10p each (8p without VAT)
1" OD alloy O-ring (18.0mm ID) 14p each (12p without VAT)
13mm clear plastic "O" Rings
· choice of thin (2.0mm) or thick (2.9mm) rings
· both fit the Adjustable Clips
5p each (£0.04 without VAT)
10 for 40p (£0.33 without VAT)

Some UK kite line suppliers:

X-Tension Dyneema lines can be knotted without the need for sleeving using the same knots recommended for Western Filament's TUF-Line XP
UK-Hooks Limited
Unit A2, Whitecross Business Centre, Whitecross Lane, Shanklin, Isle of Wight PO37 7EJ
UK
tel: 01983 868687 | fax: 01983 863329
Two colors of "Dyneema X-Tension"
200m, 500m and 1,000m spools | 48.4, 78.1, and 114.4lbs BS
on-line shop: www.uk-hooks.com (click on "Braid")
e-mail: queries@uk-hooks.com
German Climax Black Dacron - top quality uncoated Dacron line (white with black flecks)
EMKAY
Unit 13, 97A East Road, Sleaford, Lincolnshire NG34 7EH
UK
mob: Manni Kluge 07960 056678
web: Kites and More | Climax Lines
  • Climax Dacron and Dyneema
  • Kite reels on Kites and More
  • Special light wind lines
  • Extra-long lengths by special order
  • "Sleeving kits" to go with untreated super-braids

ebay UK - Look for braids and super-braids. One example would be TUF-Line XP, recommended by Welsh Hawking Club members (partly because it is fairly readily available).

Watch for Western Filament's Premium Braided Dacron, too, for a superb dacron alternative to super-braids (Bev uses this).

300 yard spools of Braided Dacron and TUF-Line XP come in 50, 80, and 150 lb. test.

TUF-Line super-braid is coated with a specially formulated synthetic wax so that knots do not require sleeving, although avoiding significant loss of strength still requires the use of certain specific and well-tied knots.

Back to top

Local UK retailers

Kites Up
The Chapel, Farleigh Road, Cliddesden, Basingstoke, Hampshire RG25 2JL
UK
tel: 01256 812487 | Mobile: 07778 352825
fax: 01256 812487
e-mail: roy@kitesup.co.uk
website: Kites Up
The Highwaymen
2 New Buildings, Hinckley, Leicestershire LE10 1HW
UK
tel: 01455 230736
Line, spools, materials, and reels
website: The Highwaymen
Veal's Mail Order
tel: 01275 892000 | 0845 644 1993 (local rate)
Good selection of fishing lines of interest to kiteflyers including "Dynon 3000"
on-line shop: www.veals.co.uk

Back to top

Spools & Winders

Back to top

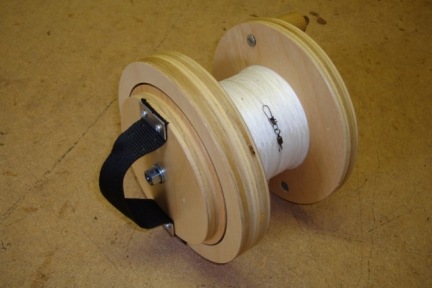

Deep Sky Reel from Into the Wind

Deep sky reels, line, spools and swivels

In the US - but delivery world-wide:


Into the Wind
1408 Pearl Street
Boulder, Colorado 80302
USA
tel: +1 (303) 449 5356
e-mail: kites@intothewind.com

Stockist of line, swivels, tubing, wind meters, spools, winders and the only proper "deep sky" reel I know of available anywhere

The reel pictured here was missing a nut when it arrived (American standard threads, not easy to find here in the UK), which is why the screw head at the top is a bit loose.

It's always best to make sure everything is snug before using a reel for the first time, and to take tools along just in case something works loose in the field - especially when the reel is new. The central nut on the main axle and its counterpart out of sight inside the hand plate are the most likely candidates, but the nuts securing the knobs can work loose on a new reel, too, as was the case here.

Things can work loose on new reels of this type; it's worth taking one partially apart when it's new and re-assembling it to make sure everything is nice and snug before loading it up and putting it to work for the first time.Round Pond June 1952

If I should ever need a new reel, it will be one of these

It's just the right size and capacity. It's smooth, well balanced, and doesn't wobble when it spins. It's almost an exact replica of the reels Gabriel at the Round Pond in London's Kensington Gardens made in the 1940s, '50s, '60s and '70s, if not before. I still use one of his originals; this one has a better finish and isn't even very expensive.



Hoop SpoolHoop Spools
8in/20cm diameter x 1½in/4cm wide

These plastic kite spools are the next best thing to proper deep-sky reels (see below). They're light, easy to carry and inexpensive. They hold plenty of line, and wind in a lot per turn. Letting line out with drag is easy, and the grip is comfortable for any length of time.


"Yo-yo" Spools (if you can find them) are similar to Hoop Spools, but asymmetrical: one of the side flanges is slanted outward so the line can literally fly off if they're turned sideways or left lying on the ground. They're especially good for letting line out fast.

Back to top

Wind meters and other weather instruments

Kaindl Windtronic 2
This is a favorite of mine - it suits my local swirly conditions by virtue of being omnidirectional - it's also very sensitive
the instruction sheet says it floats, so I presume that means it's rainproof, too
May take some shopping around to find
My Windtronic 2 was on sale, but the omnidirectional Skywatch Meteos and Atmos can be also be recommended (for the same reason, although I don't see a Beaufort scale on the Atmos). A couple of websites list the Meteos as discontinued; nevertheless, there are still over 2,000 pages of references to them on Google
Andrew Jones (aka "Wilf"), co-inventer of the Flexifoil, made his own pocketable, hand-held, omnidirectional anemometer around 40 years ago. It had three folding, lightweight cups that generated a current through a small electric motor used as a generator, and had a hand-drawn scale that had been calibrated in the wind tunnel at Cambridge University. I thought it was ingenious. Incidentally, small directional wind meters use a spinning propeller whose revolutions are counted by a photoelectric cell, which is also interesting.
Kiteworld
E-mail: sales@kiteworld.co.uk
URL: www.kiteworld.co.uk/
Aces Electronics
URL: www.aceselectronics.co.uk/
Skyblue Leisure
URL: www.skyblueleisure.co.uk/
VliegerOp (Holland)
E:mail: VliegerOp
URL: www.vliegerop.com/
Into the Wind (USA)
E-mail: kites@intothewind.com
URL: www.intothewind.com/
Skyview Systems Look for "Handheld Instruments"
tel: 01787 883138
Supplier of lightning detectors that can detect lightning up to 40 miles away
E-mail: skyview@rmplc.co.uk
URL: www.skyview.co.uk/

Back to top
